MACHINE DESCRIPTION:

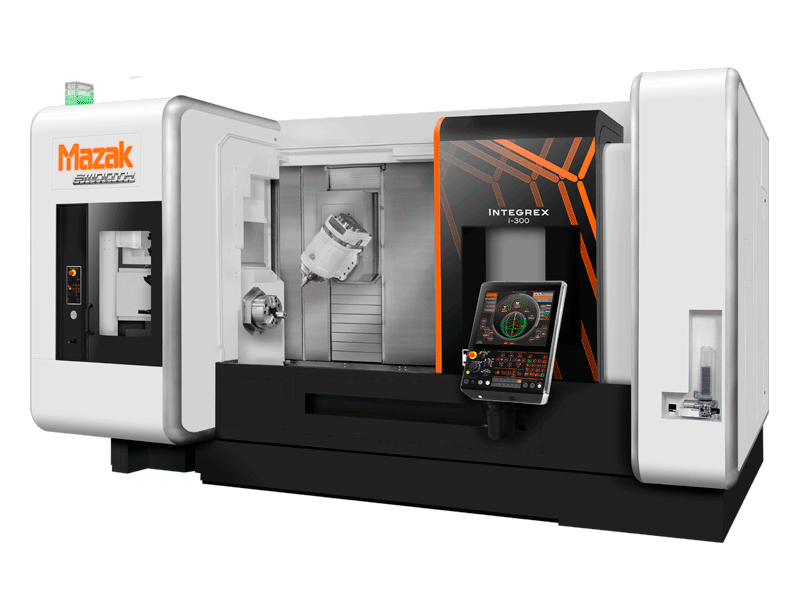

INTEGREX i-300S advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for Done-In-One machining and works to minimize fixtures, tools, handling and non-cut time.

Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed work), round parts, or highly contoured sculptured parts.

MACHINE CHARACTERISTICS:

• Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
• Optional 20k RPM (15 HP) milling spindle available
• Productive second turning spindle for Done-In-One part processing
• Full C-axis contouring (.0001 degree minimum index)
• Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
• 36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
