MACHINE DESCRIPTION:

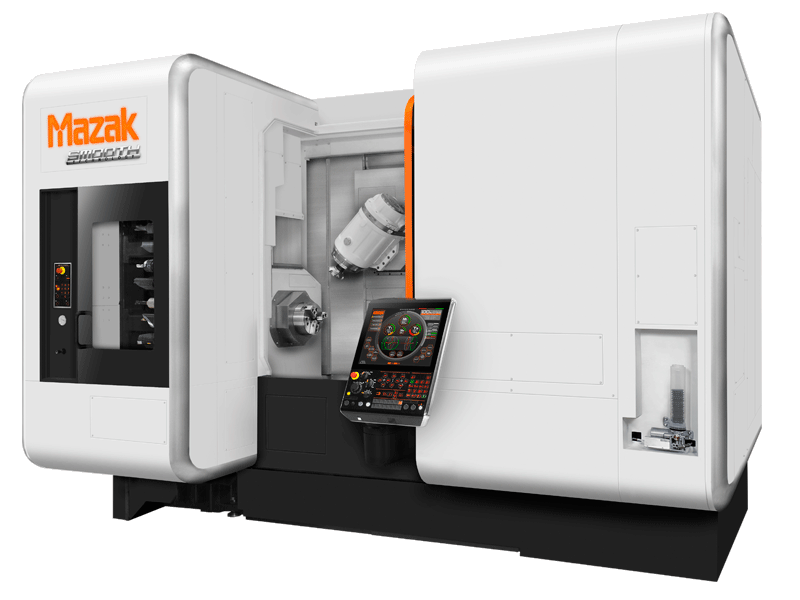

INTEGREX i-200S advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for Done-In-One machining and works to minimize fixtures, tools, handling and non-cut time.
Additionally, the machine brings dramatic reductions in lead-time, and improves part accuracy through the elimination of multiple setups. With full 5-axis capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed work), round parts, or highly contoured sculptured parts.
MACHINE CHARACTERISTICS:
- Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
- Optional 20k RPM (15 HP) milling spindle available
- Productive second turning spindle for Done-In-One part processing
- Full C-axis contouring (.0001 degree minimum index)
- Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
- 36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
机床参数
| Specification | 中心距 - 1000U in | |
|---|---|---|
| 加工能力 | 最大回转直径 | 658 mm / 25.91 in |
| 最大加工直径 | 658 mm / 25.910 in | |
| 最大棒材加工能力 (受卡盘影响) | 65 mm / 2.6 in | |
| 最大加工长度 | 1011 mm / 39.800 in | |
| 主轴 | 卡盘尺寸 | 8 in |
| 最大转速 | 5000 rpm | |
| 电机功率 (30 分钟额定) | 22 kw / 30.0 hp | |
| 铣削主轴 | B轴行程 | 240° |
| 刀库容量 | 36 | |
| 最大转速 | 12000 rpm | |
| 电机功率 (20 ED Rating) | 22 kw / 30 hp | |
| 进给轴 | 行程(X轴) | 615 mm / 24.21 in |
| 行程(Y轴) | 260 mm / 10.24 in | |
| 行程(Z轴) | 1077 mm / 42.40 in | |
